High-Performance Insulated Metal Panels (IMP)

Beyond their high R-values, IMPs offer:

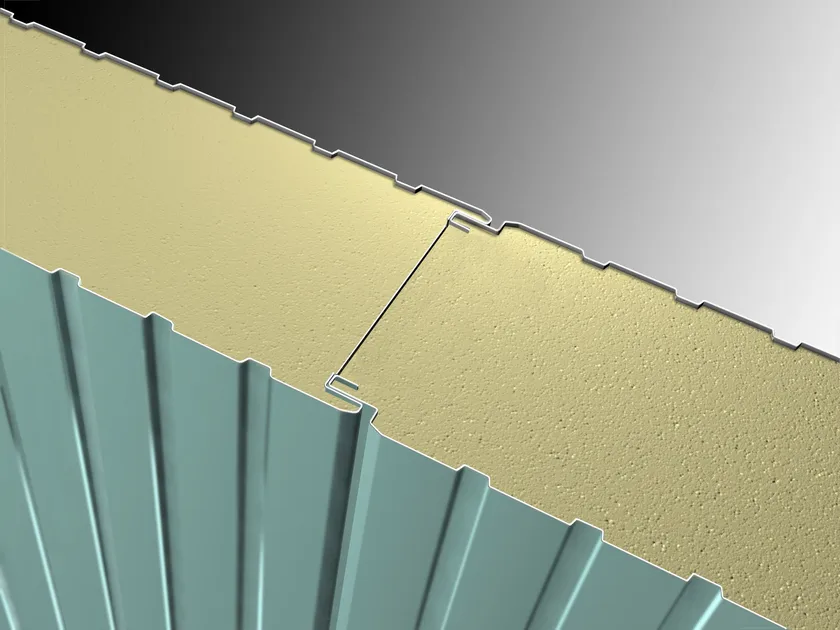

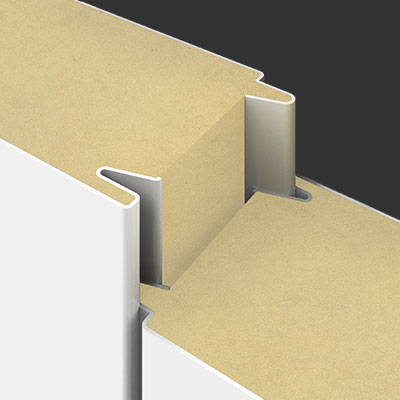

– Superior Airtightness: The interlocking joinery creates a continuous seal.

– Structural Integrity: Their high strength-to-weight ratio allows for longer spans and less secondary steel.

-Sustainability: Fully recyclable materials and reduced energy consumption for the building’s life.

Insulated Metal Panels provide a single-component solution. While traditional methods require multiple trades to install an air barrier, vapor barrier, insulation, and exterior cladding, IMPs combine all four into one step. This typically results in installation speeds up to 50% faster and lower overall labor costs.

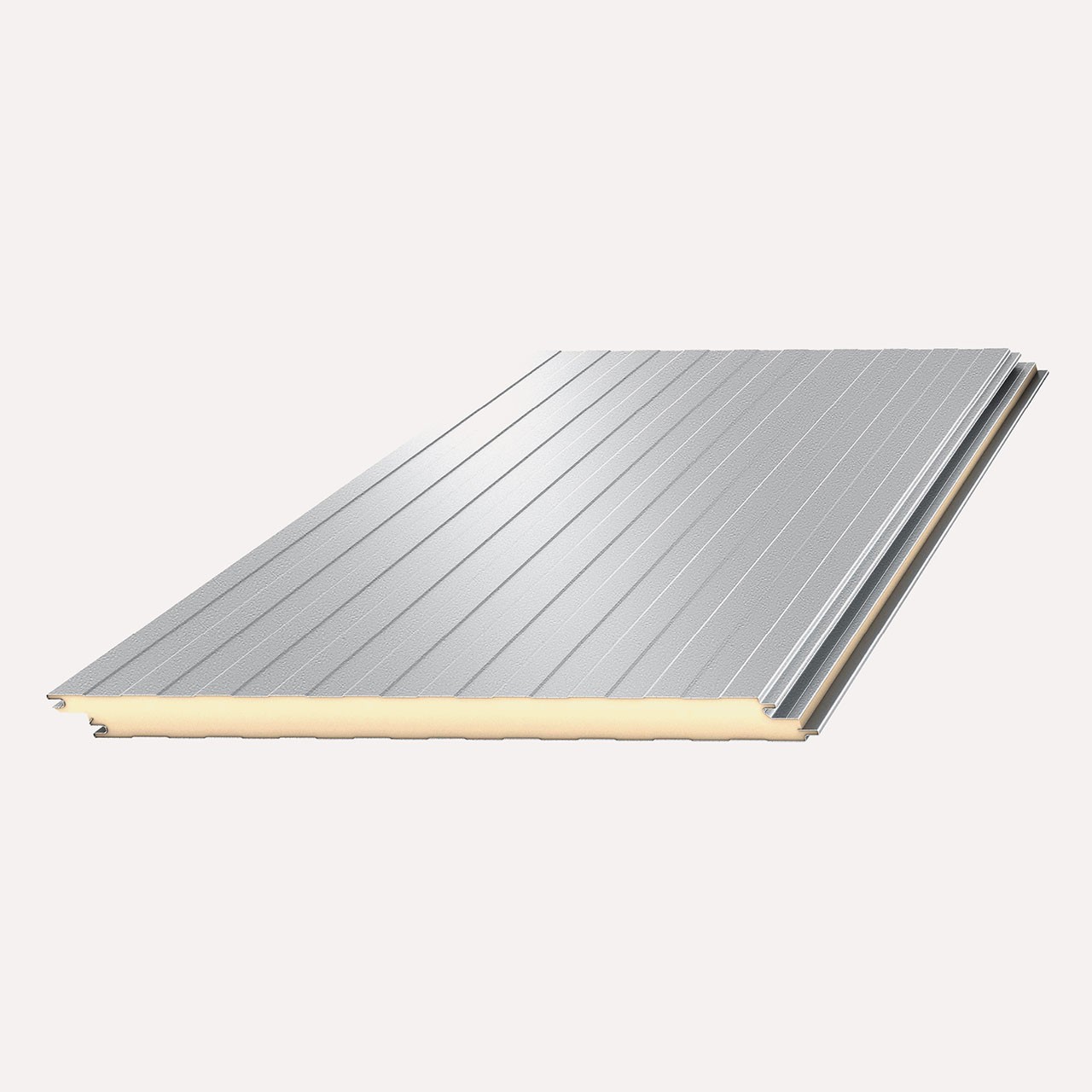

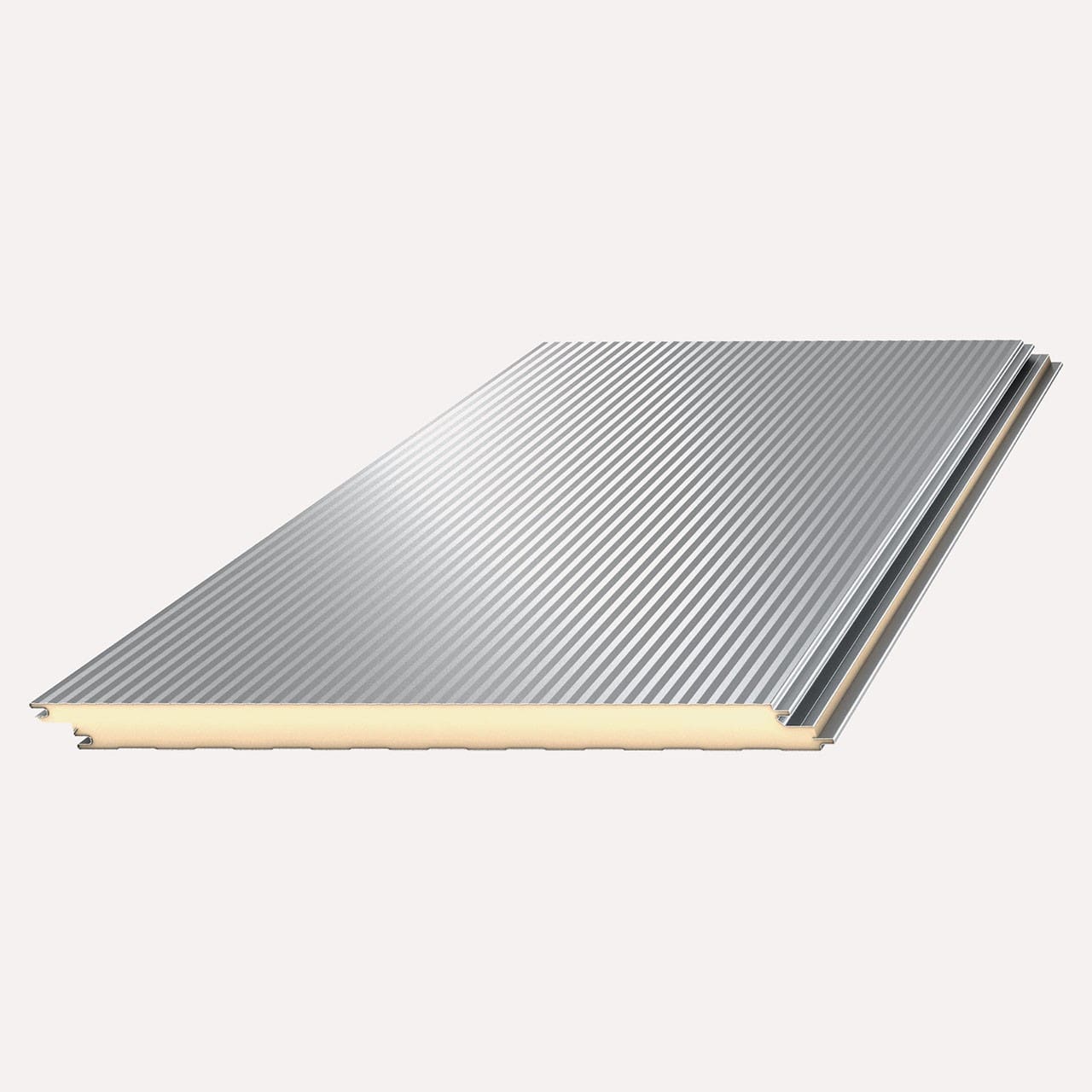

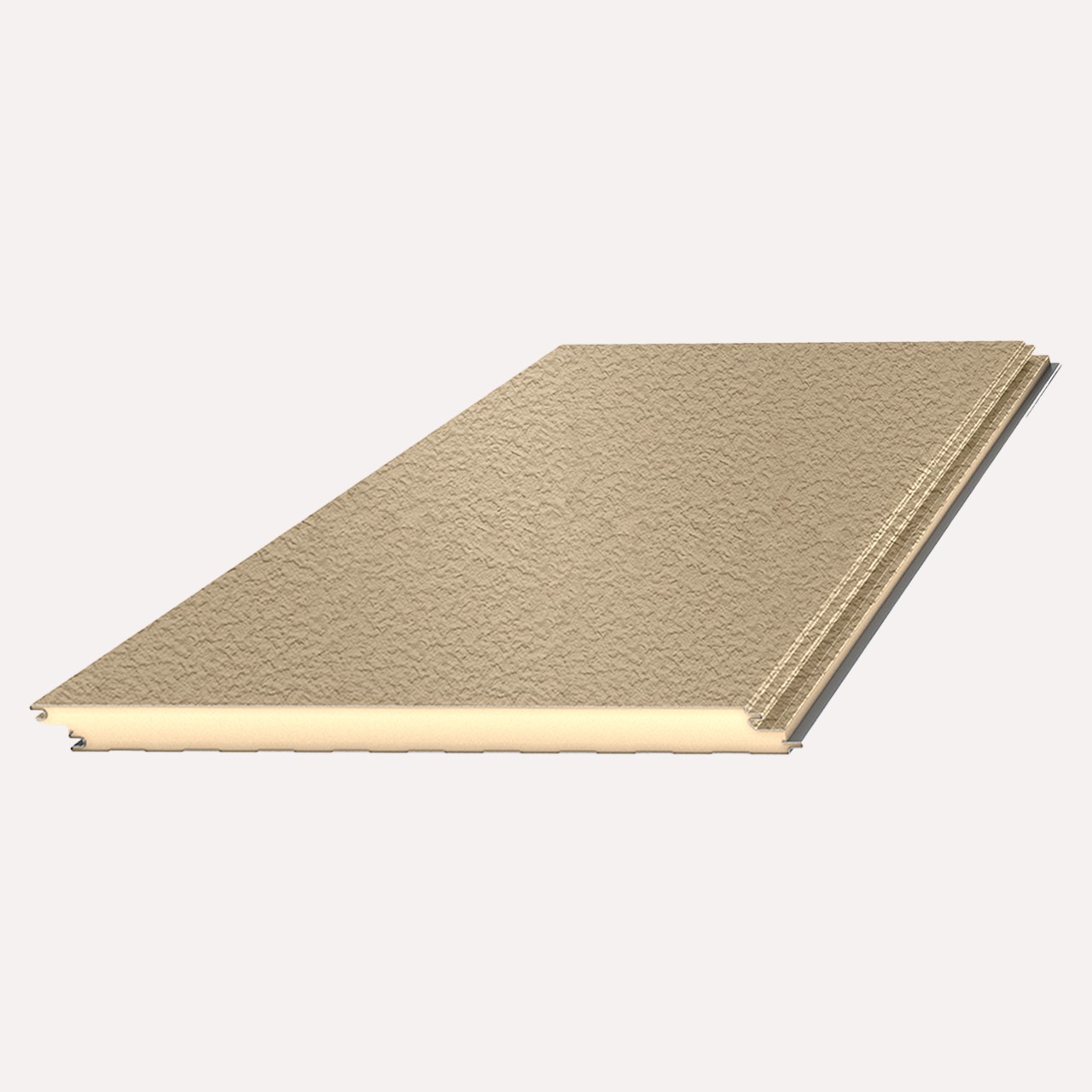

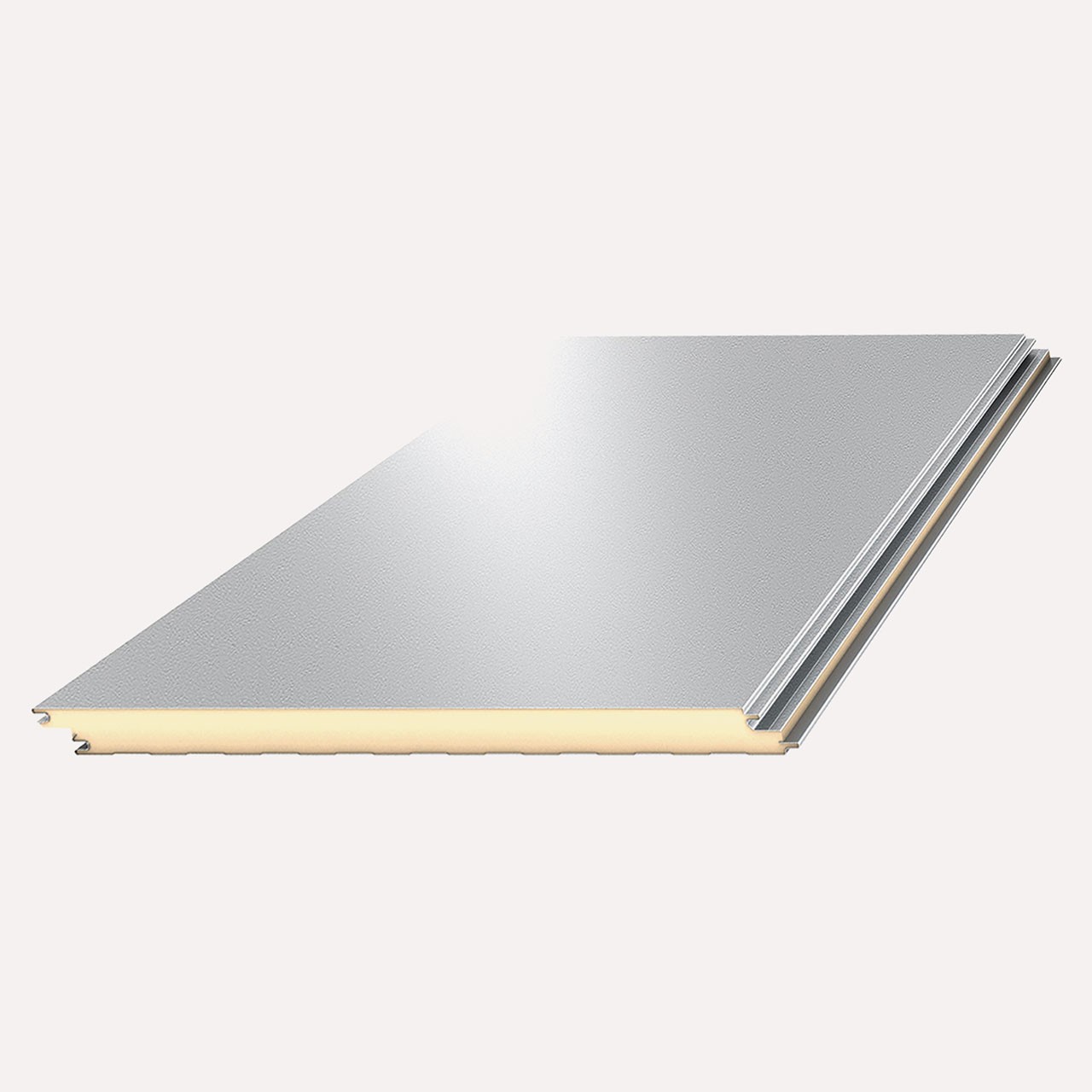

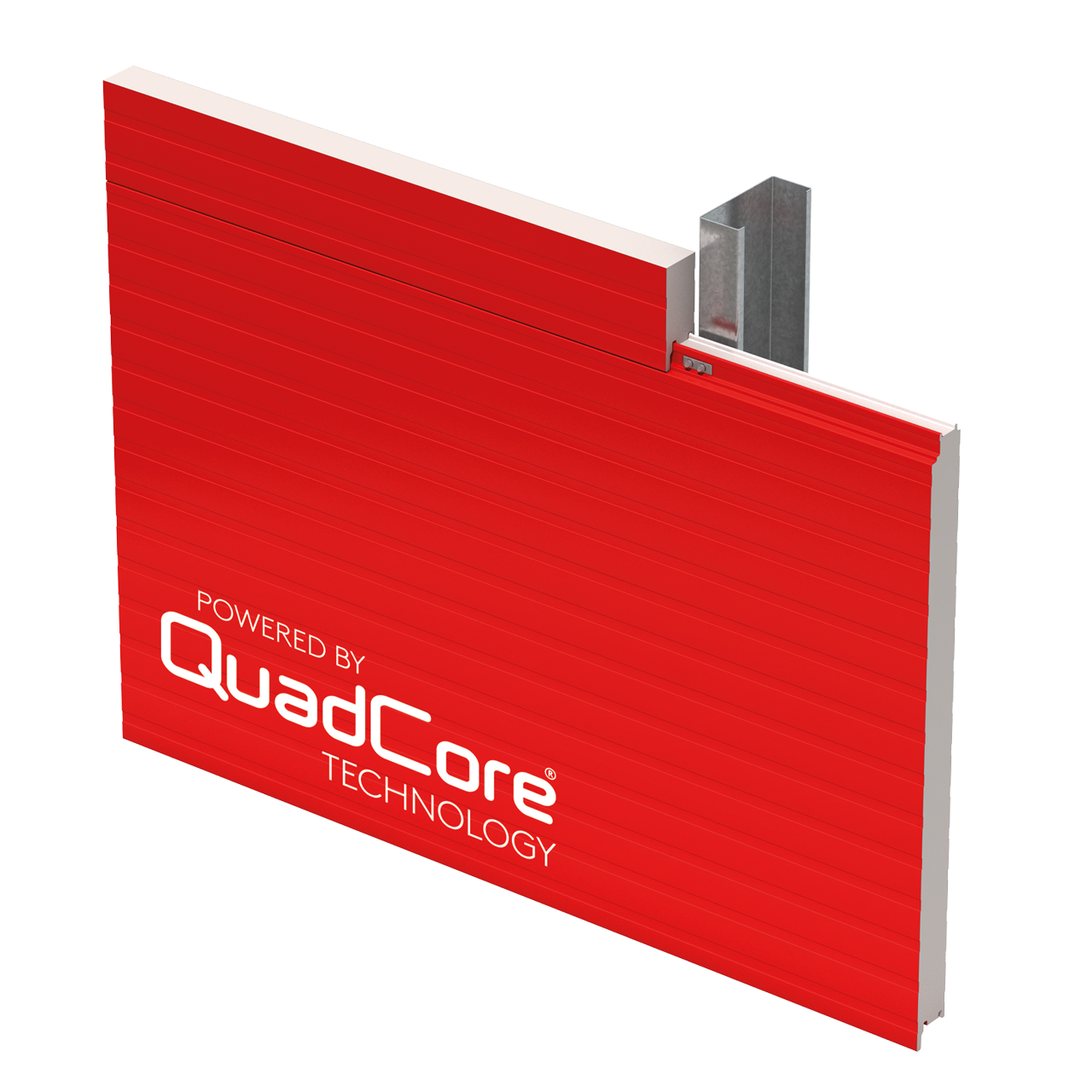

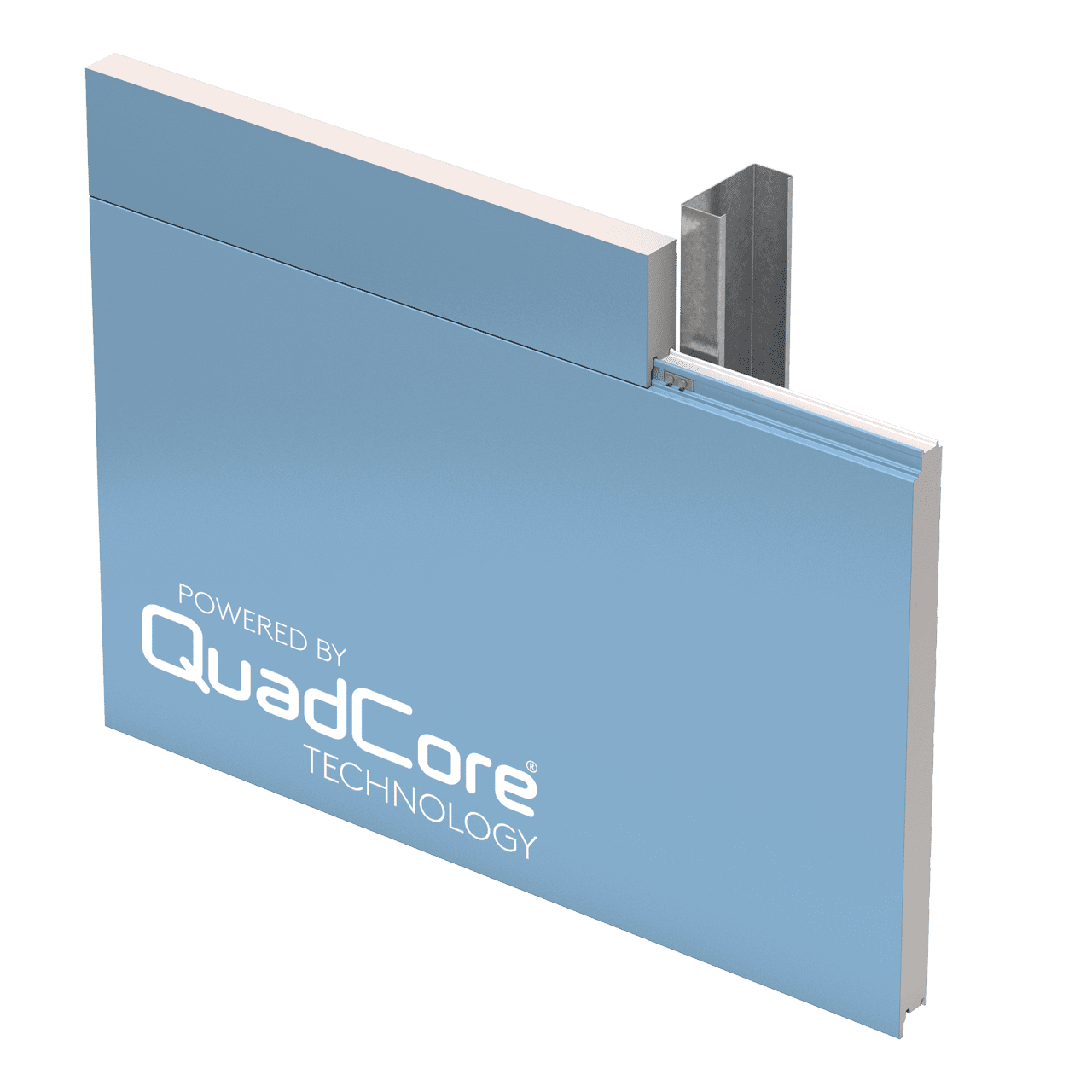

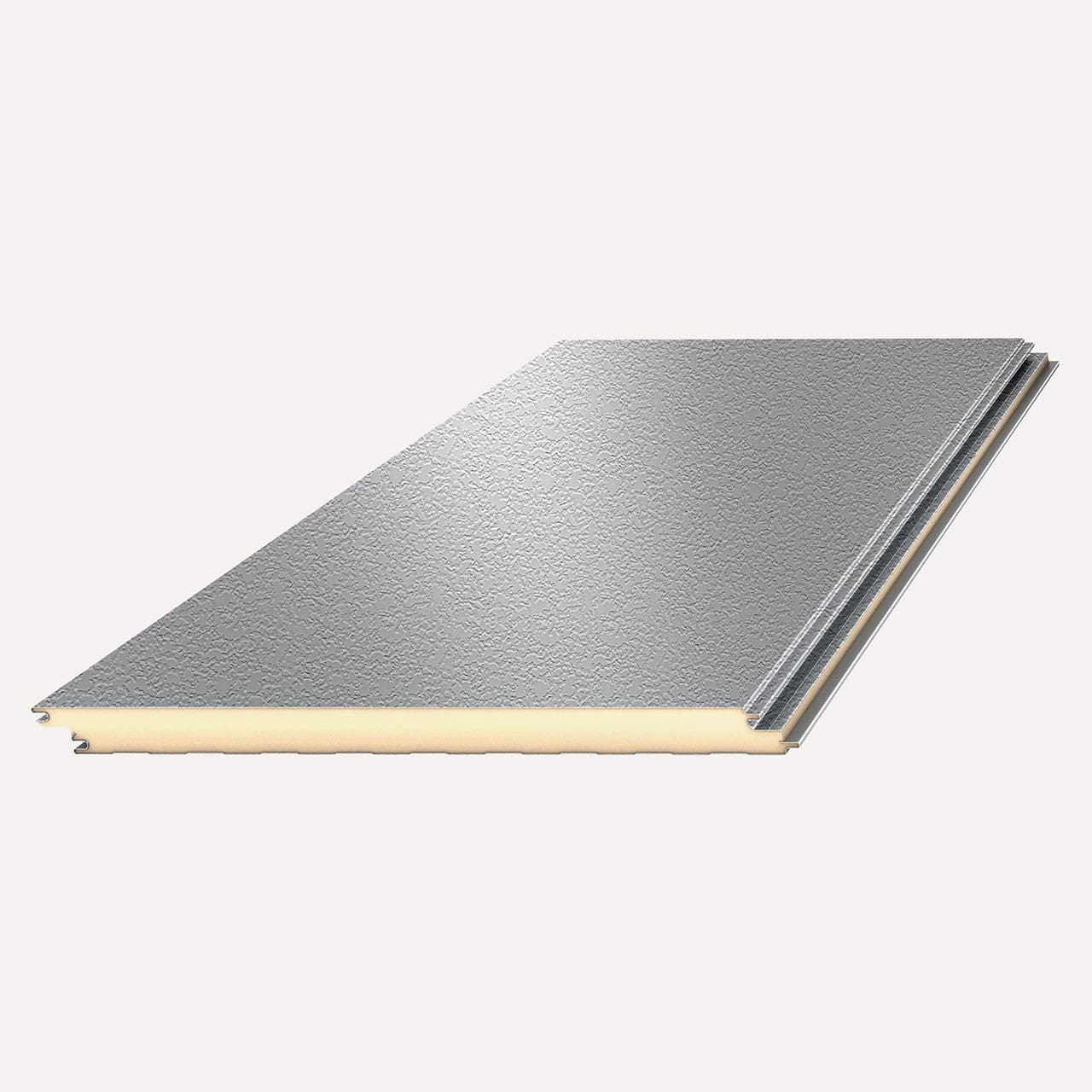

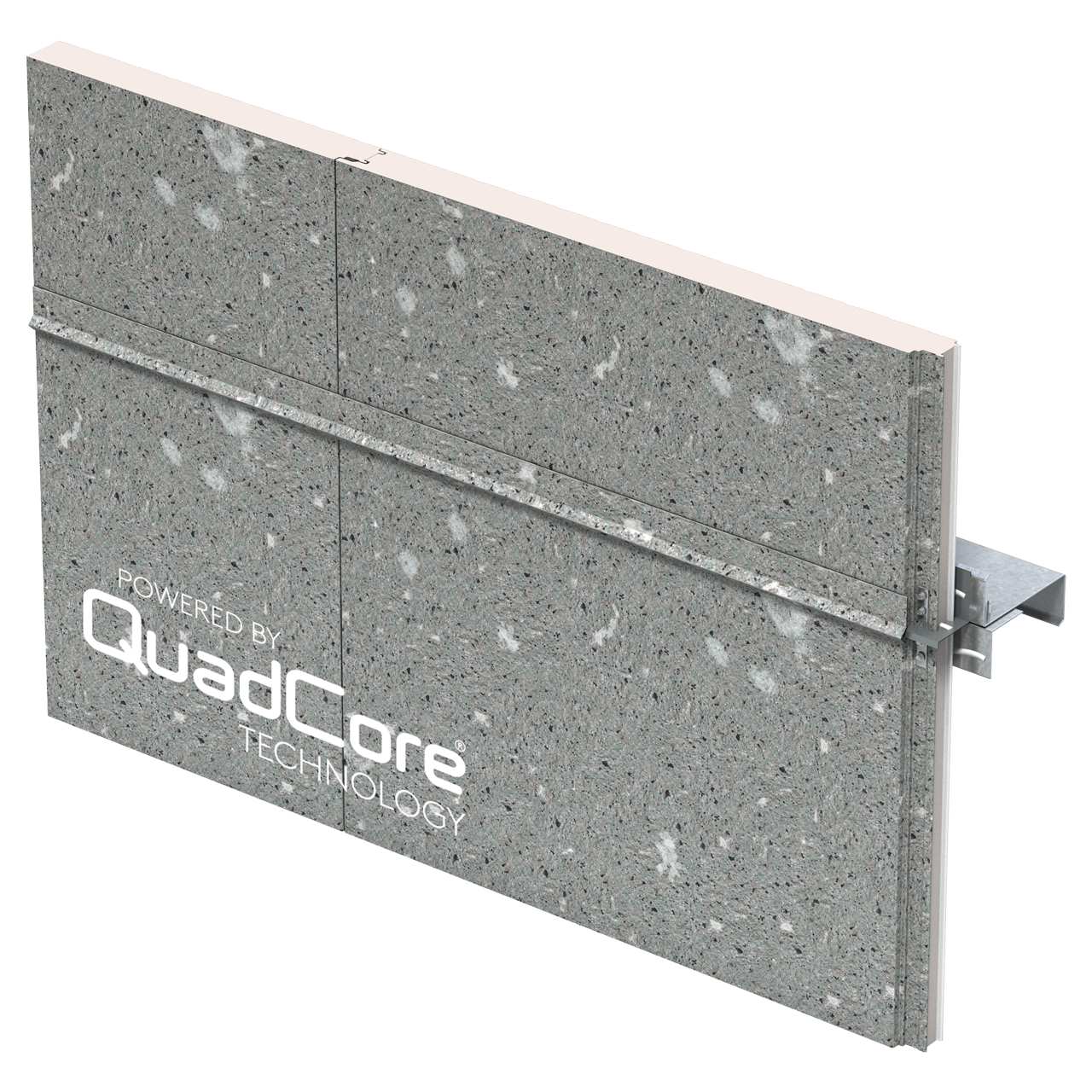

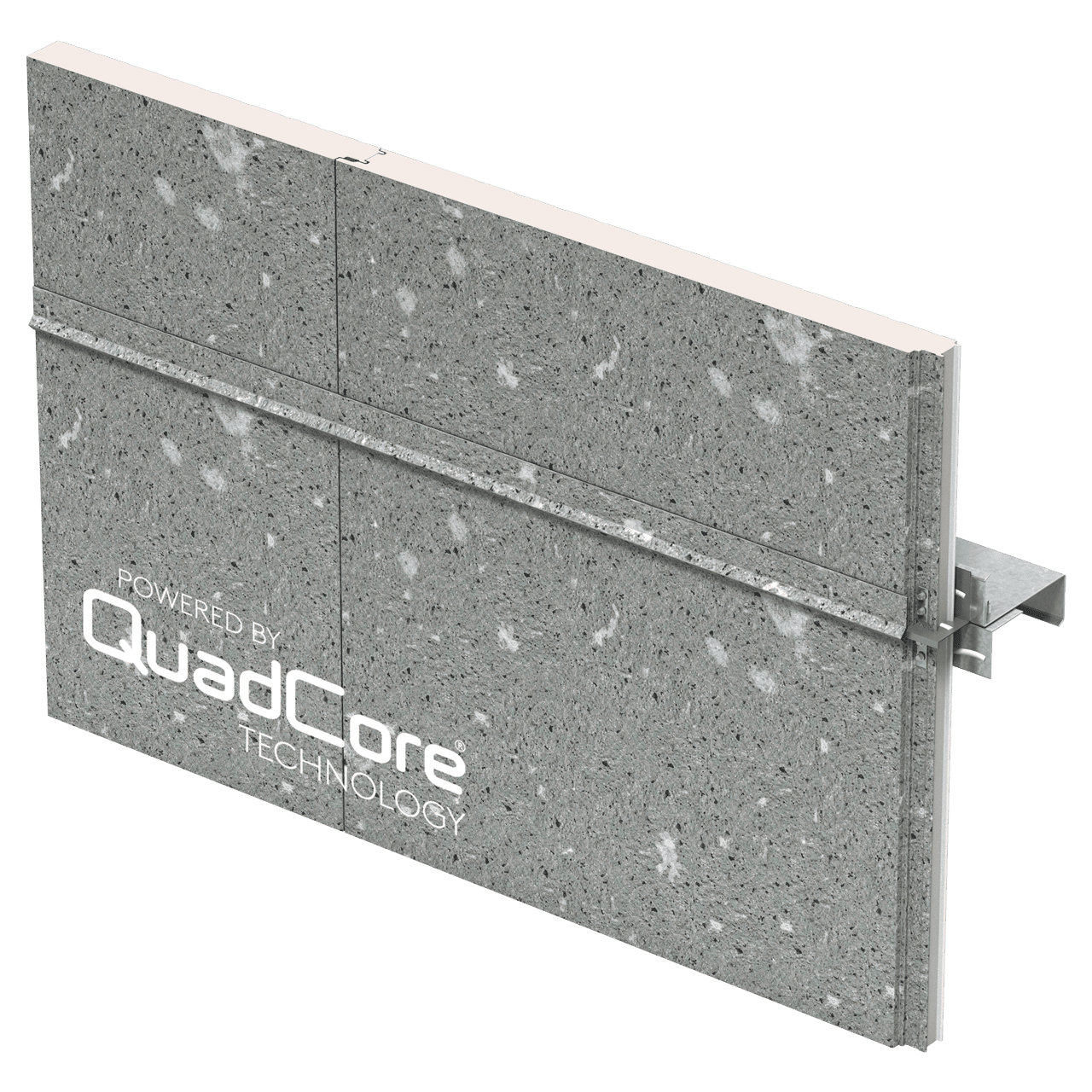

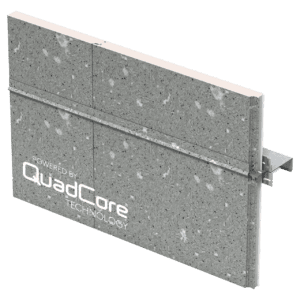

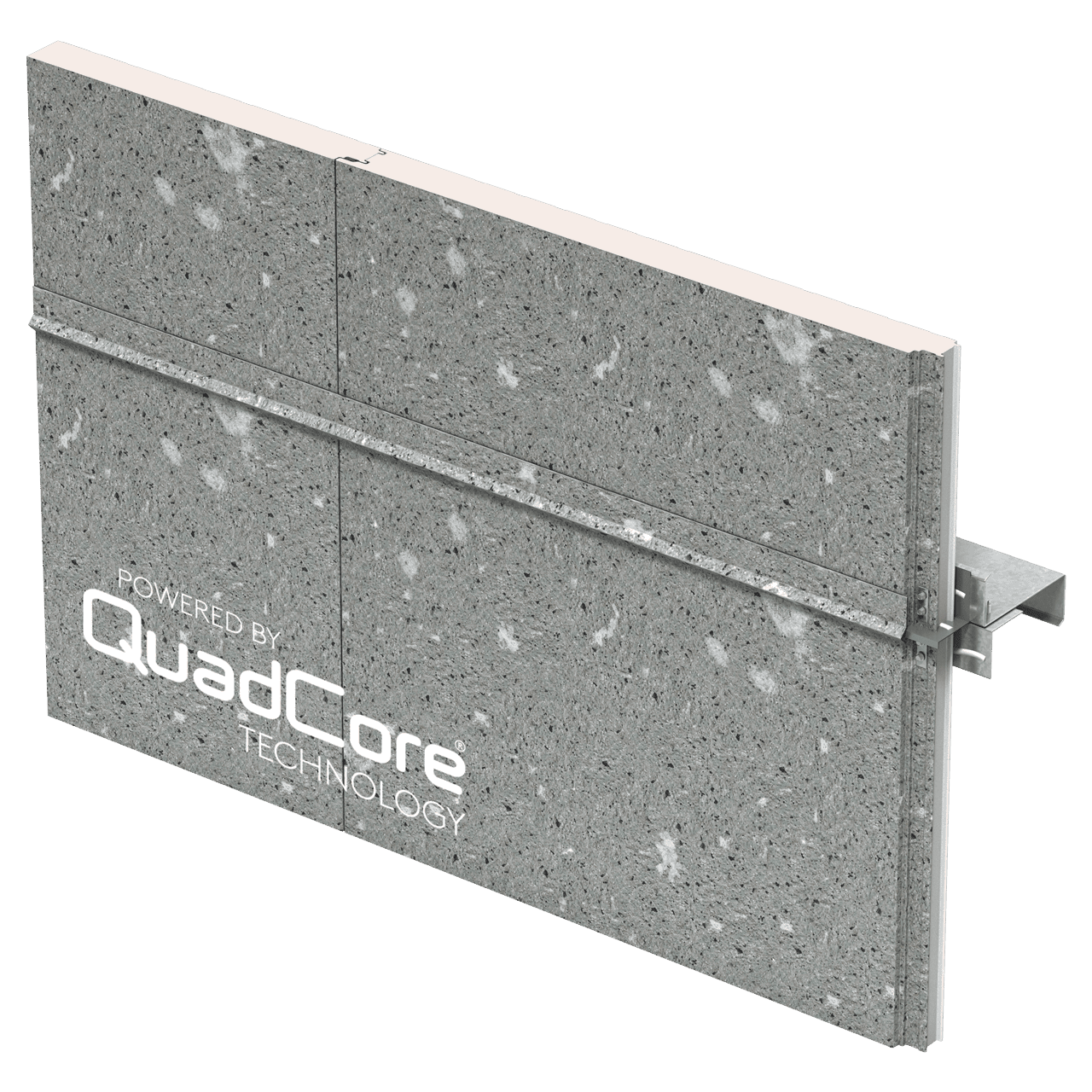

The thermal resistance of an IMP depends on the core material and thickness. Typically, panels with a polyisocyanurate (PIR) or QuadCore® center offer an R-value of 7.2 to 8.0 per inch. For example, a 4-inch panel can provide an R-value of approximately R-30 to R-32, significantly exceeding traditional fiberglass insulation performance.

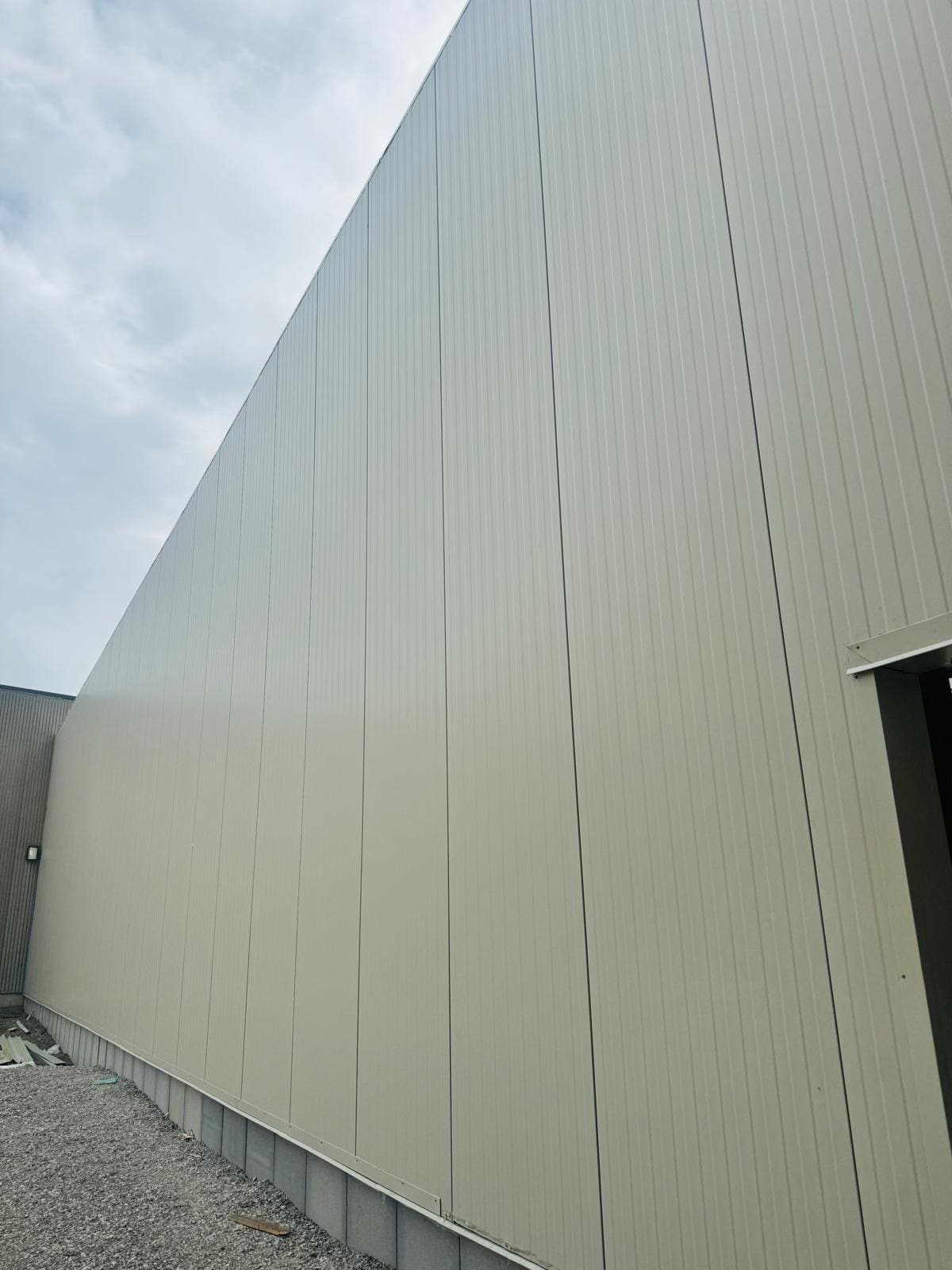

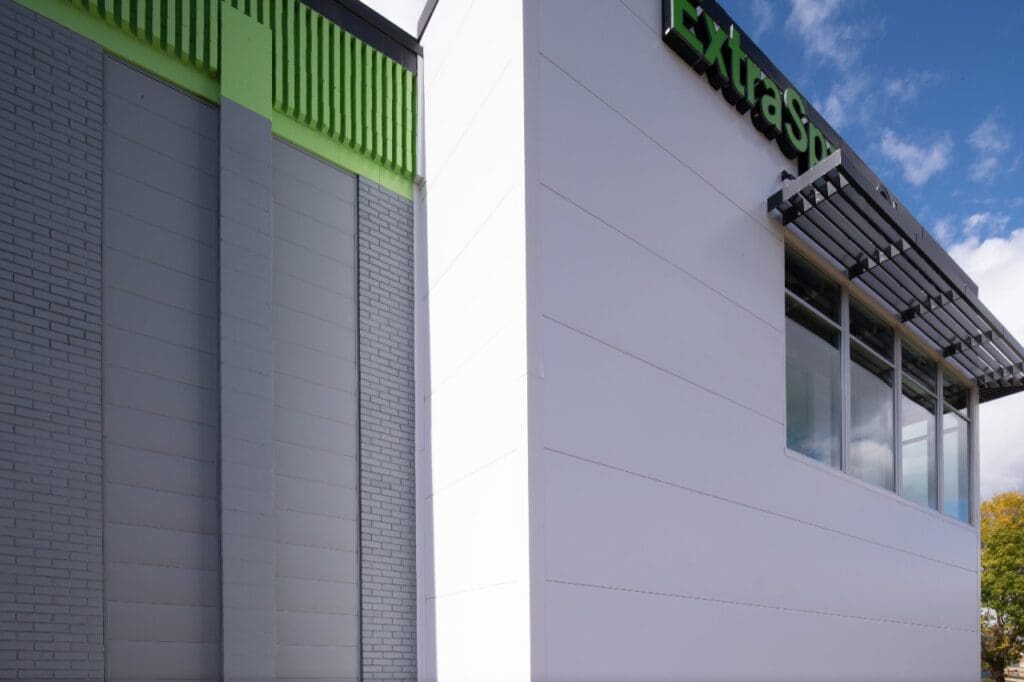

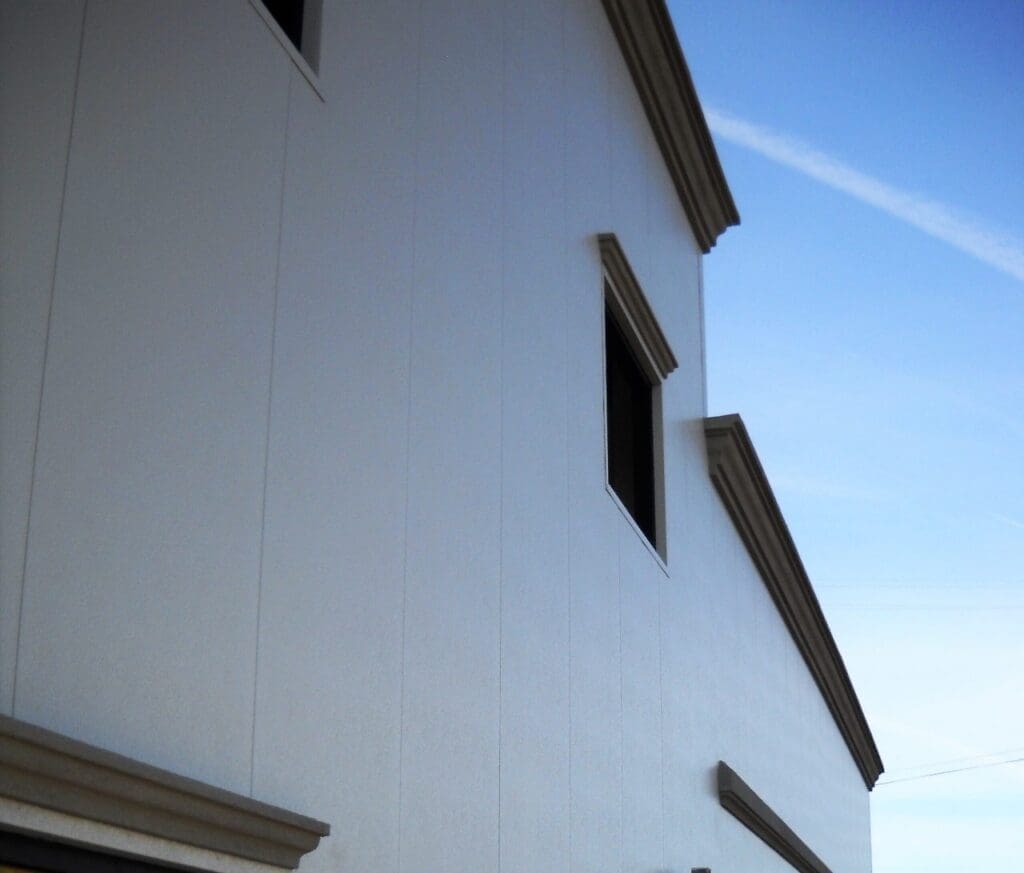

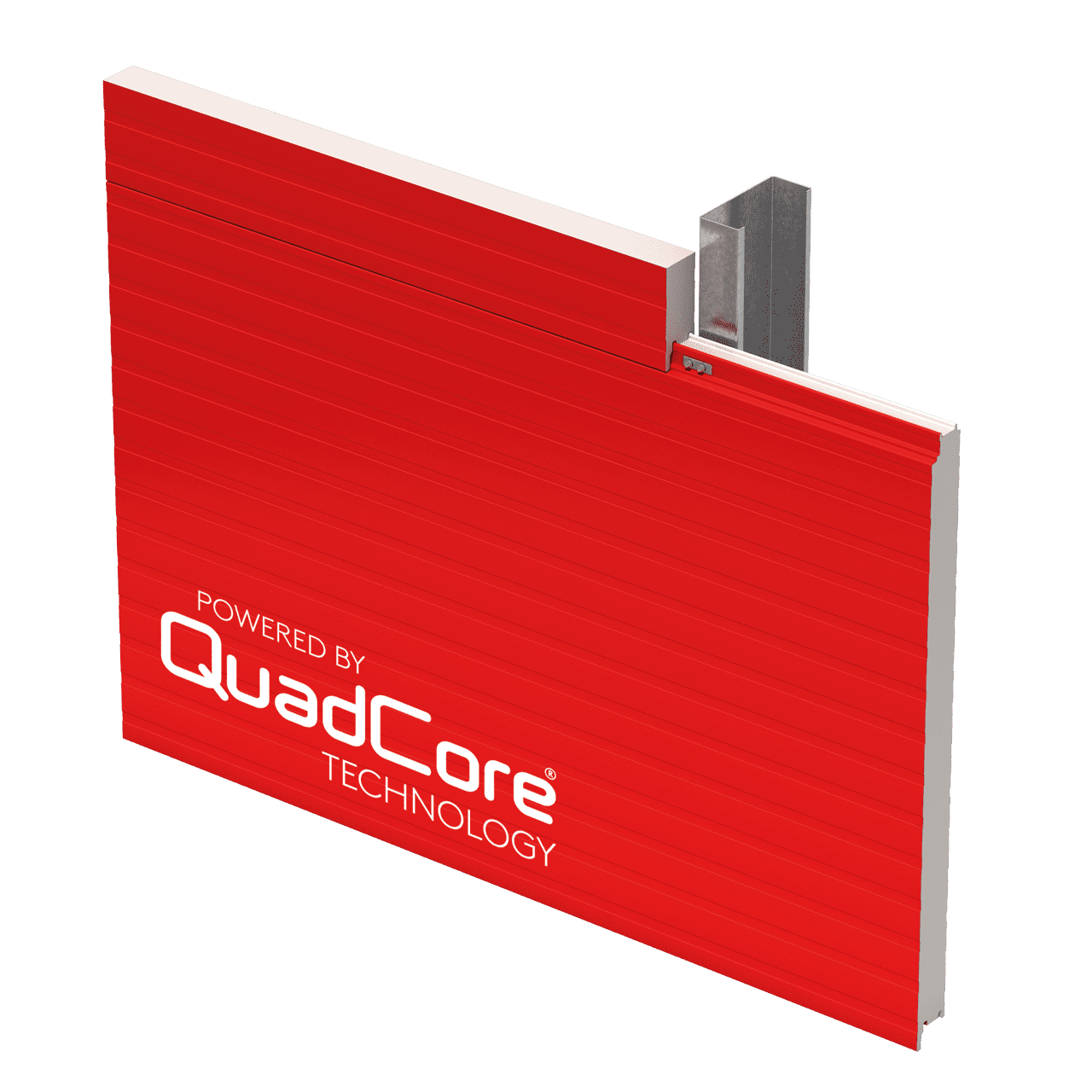

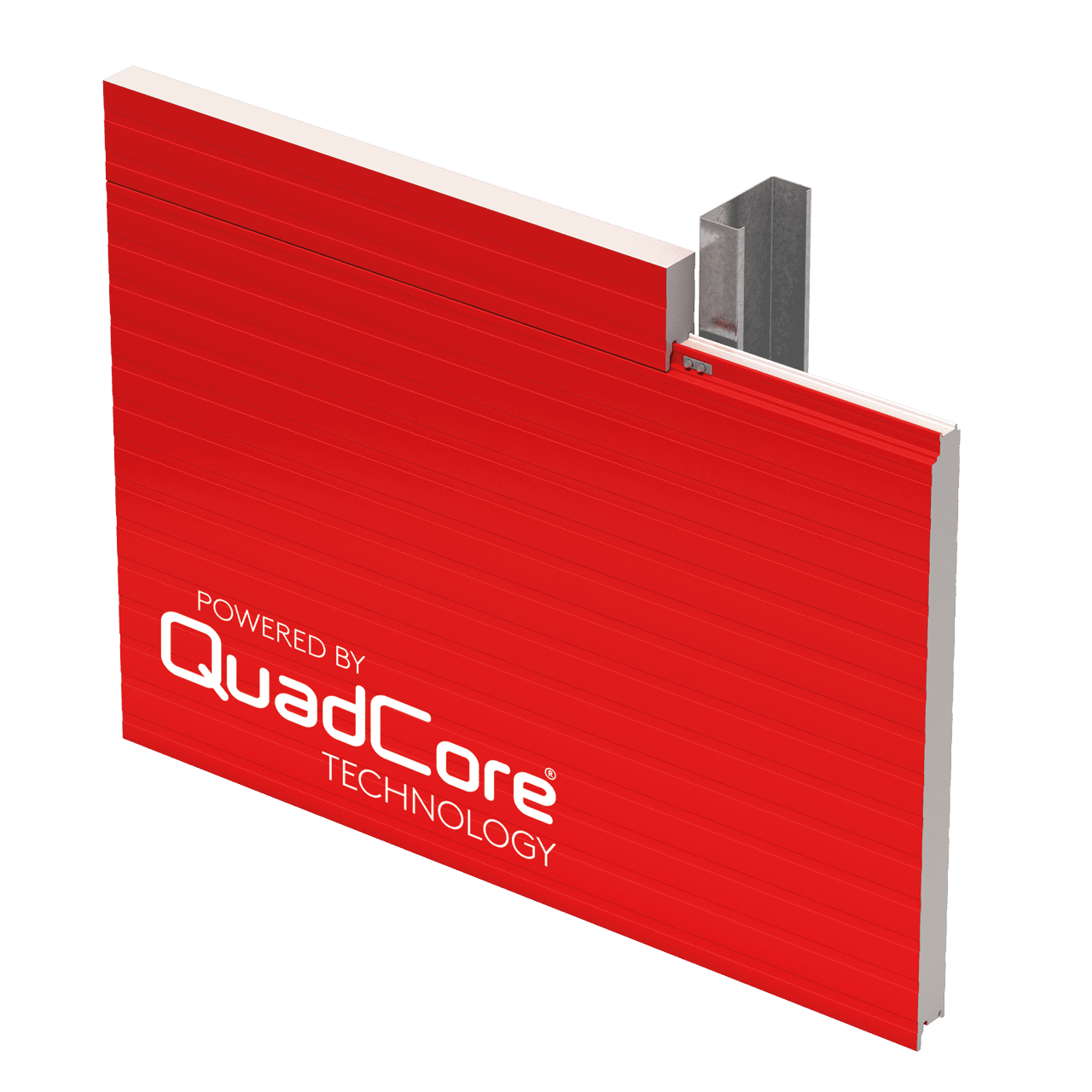

Absolutely. Our architectural IMPs are designed for both orientations. Vertical installation is common for industrial warehouses to maximize span, while horizontal installation is often preferred by architects for commercial offices to create a modern, sleek aesthetic with deep, expressed joints.

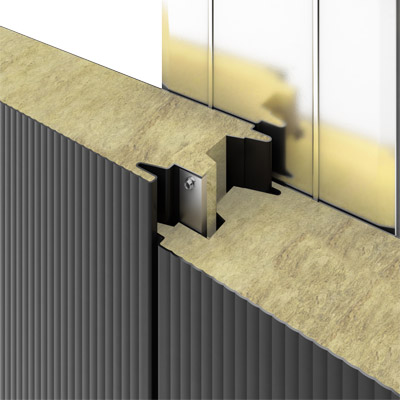

Yes. We supply panels from Kingspan, Vicwest, and Norbec that are tested to meet stringent Canadian building codes (CAN/ULC-S101, S102, S134, and S138). For projects requiring high fire resistance, we offer Mineral Wool core panels that can achieve 1, 2, or 3-hour fire ratings.

IMPs are incredibly versatile. They are the industry standard for:

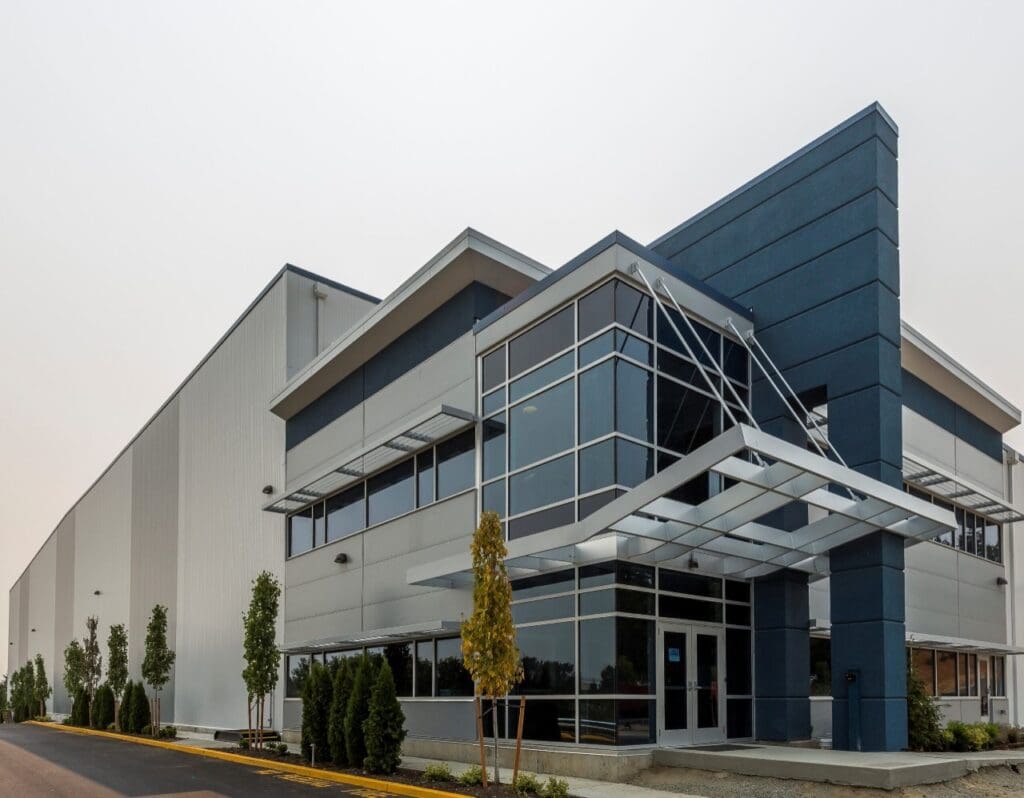

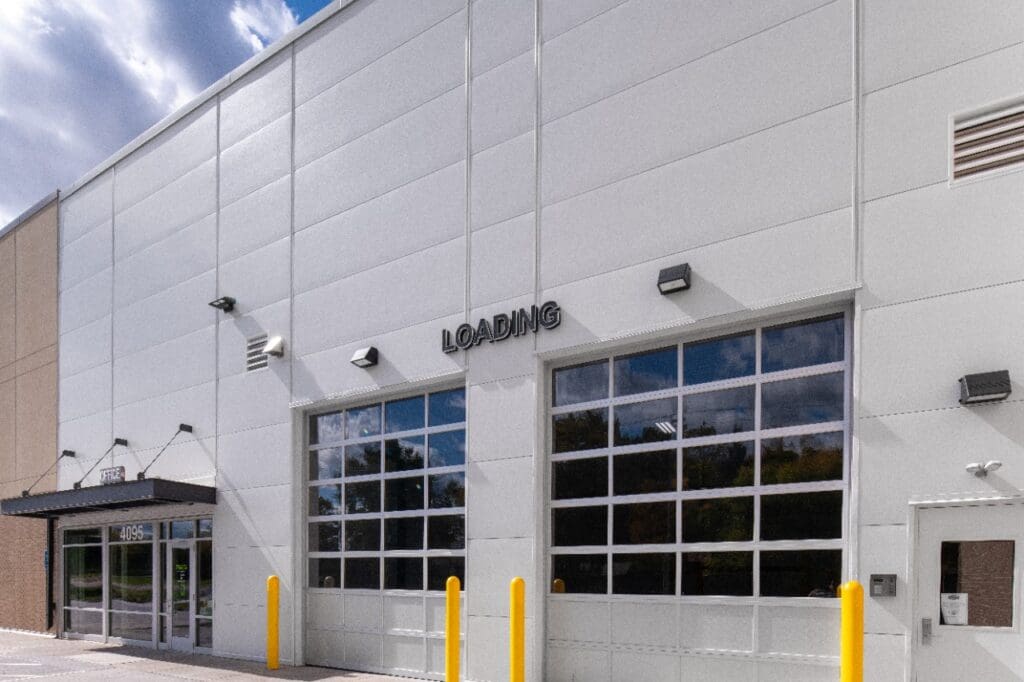

• Commercial/Retail: Shopping centers and car dealerships.

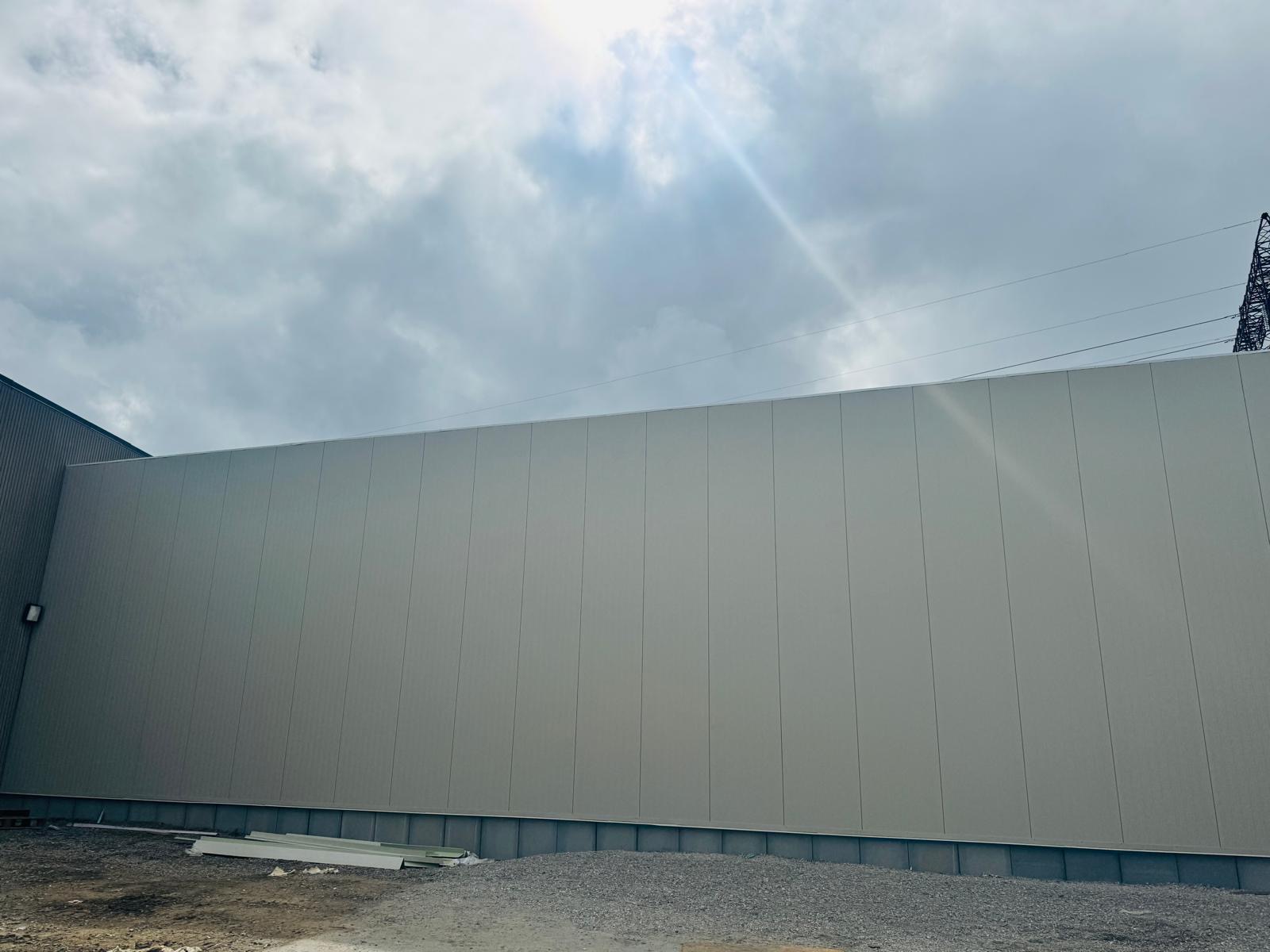

• Industrial: Warehouses and manufacturing plants.

• Cold Storage: Food processing and pharmaceutical labs.

• Education: Modern school facades and sports complexes.

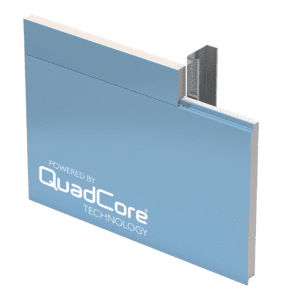

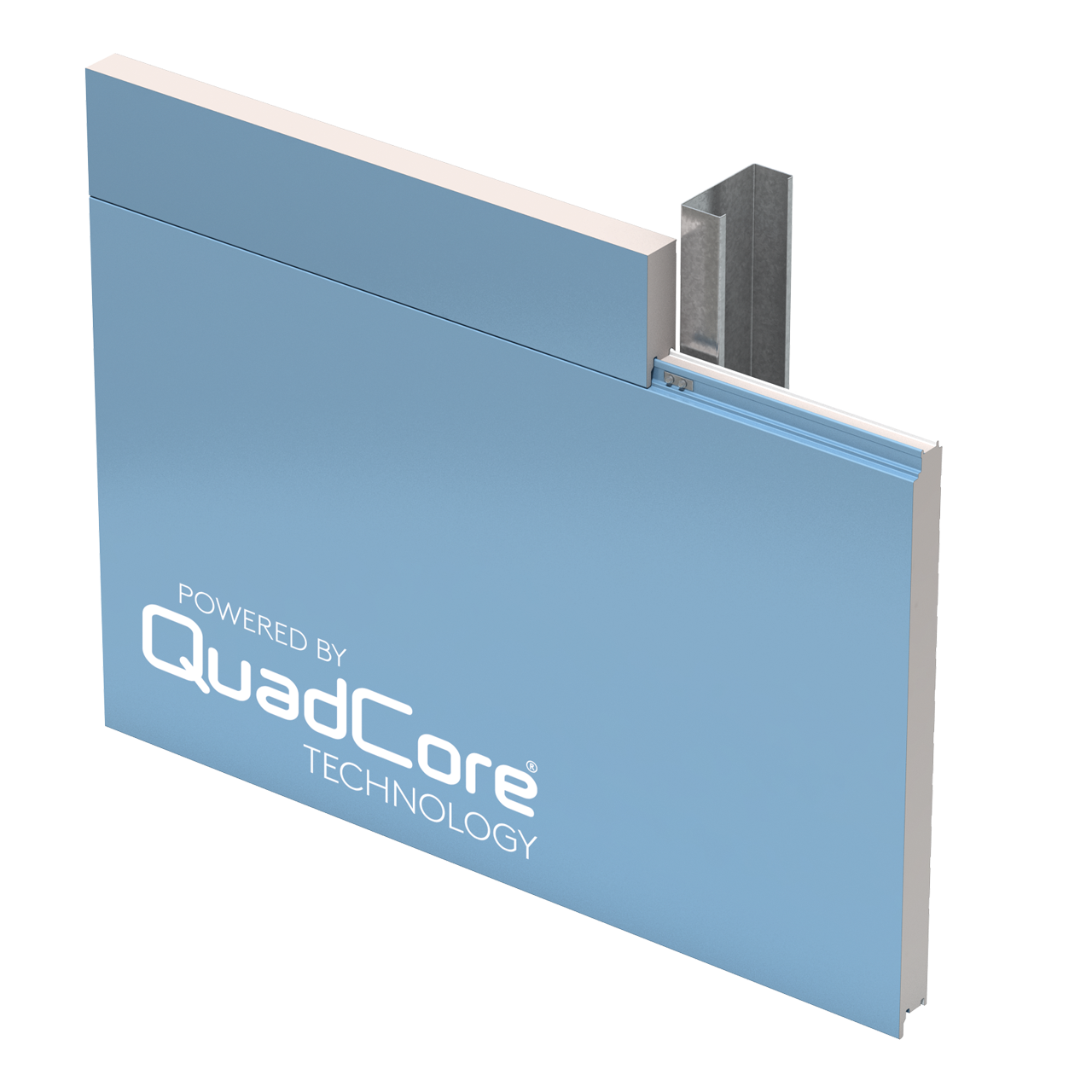

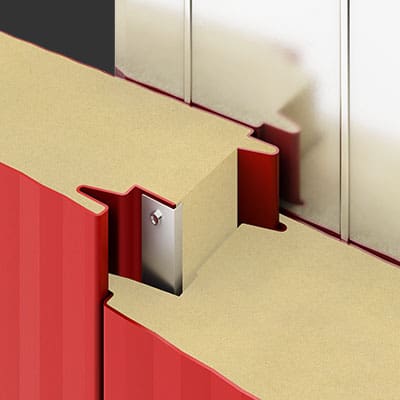

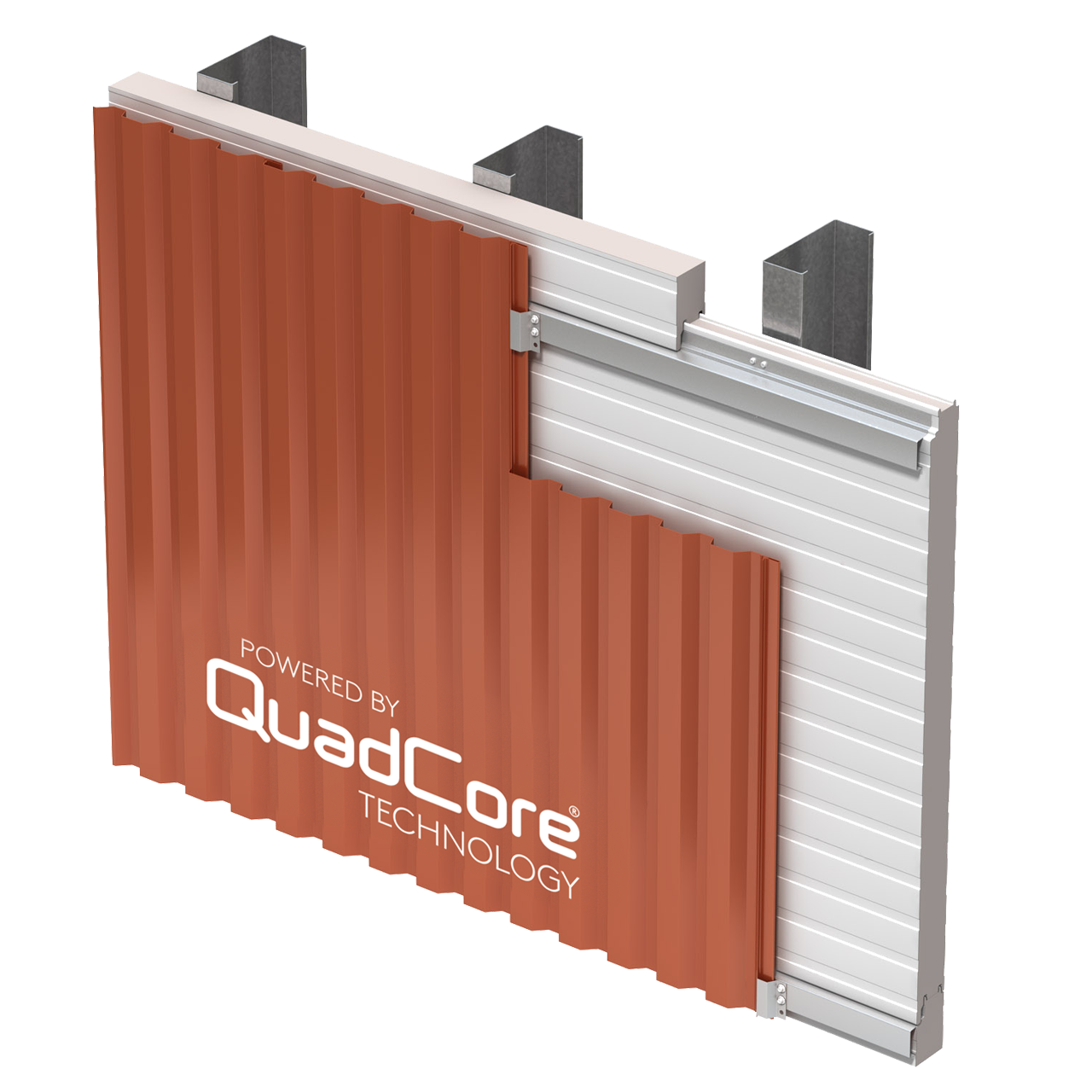

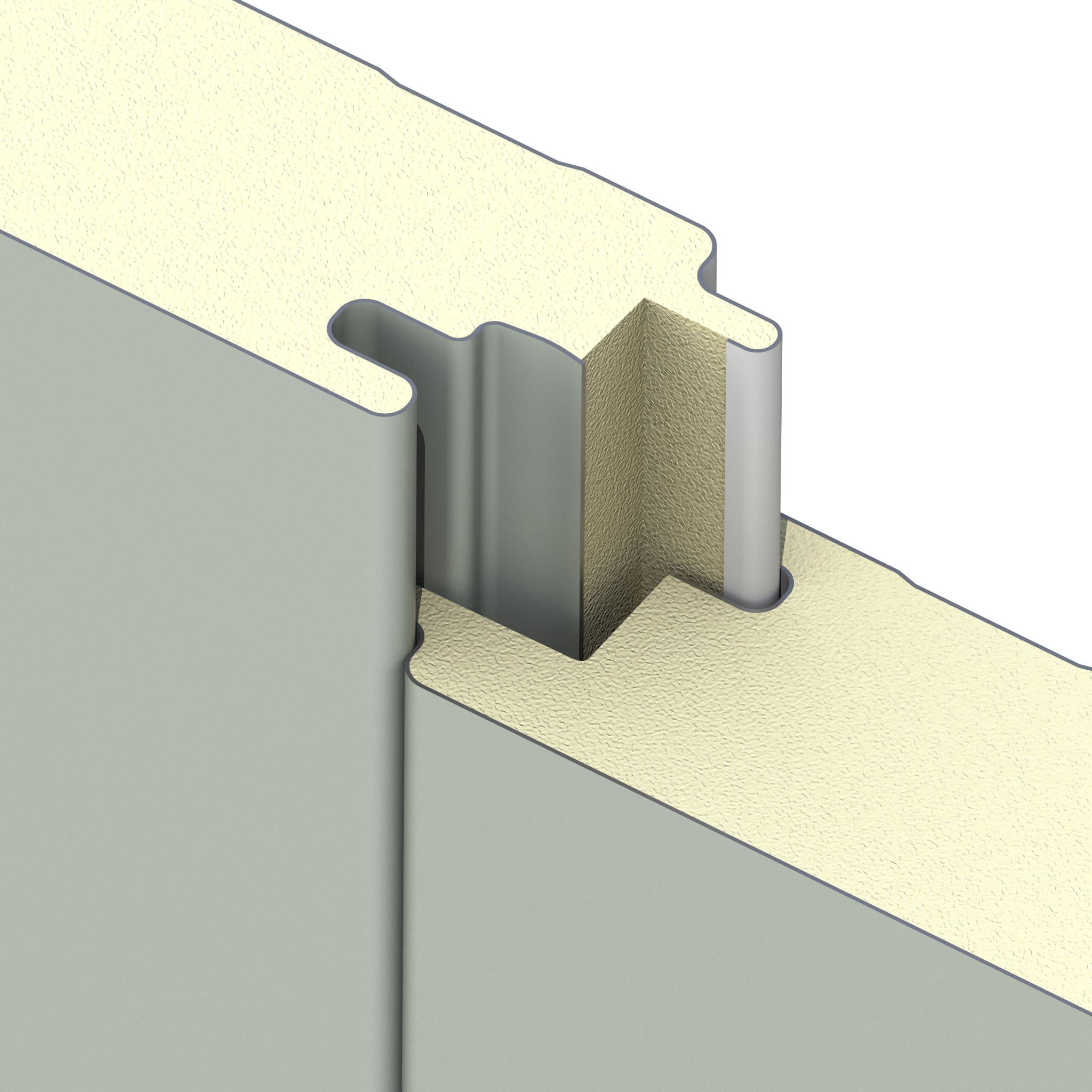

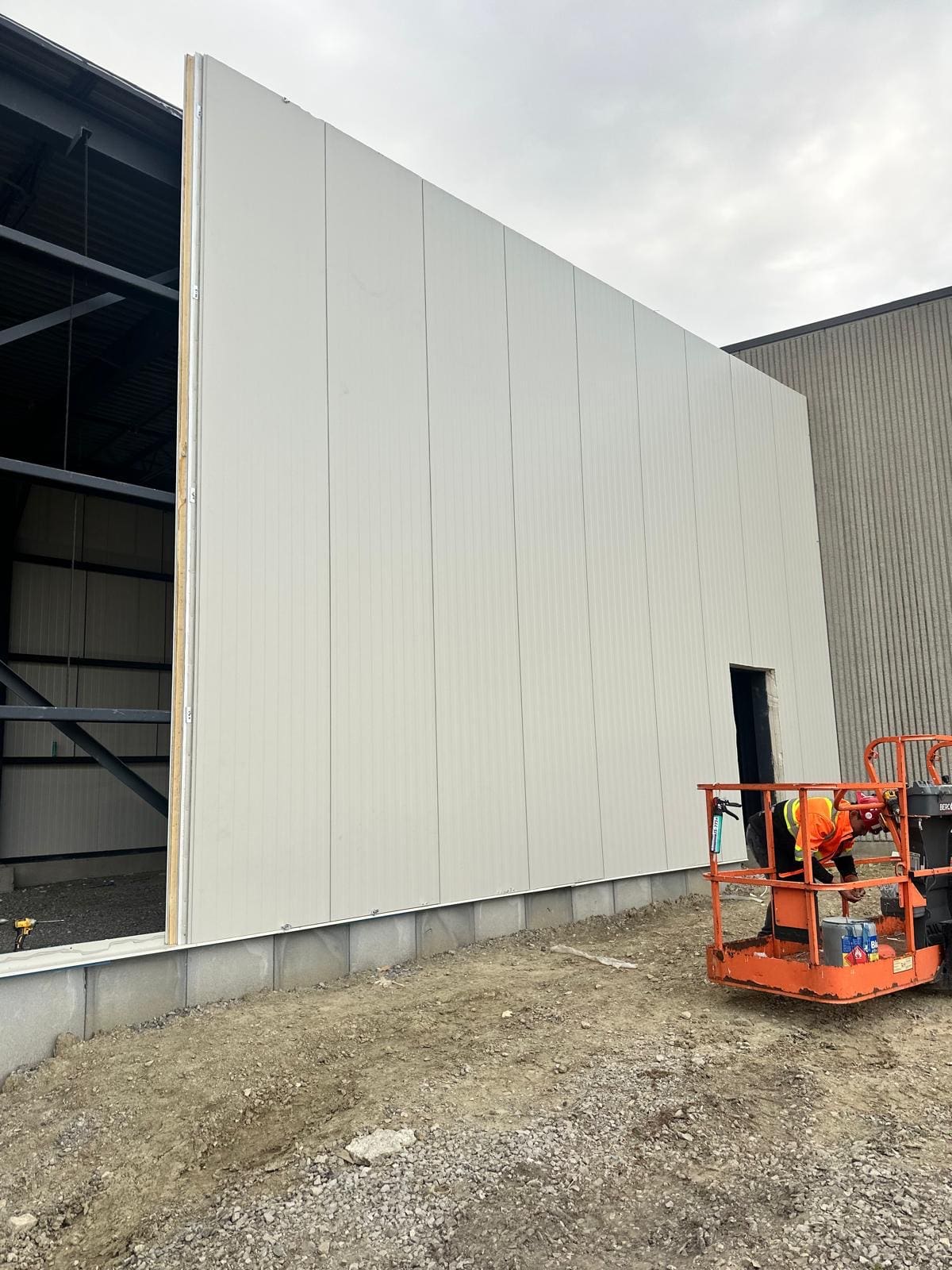

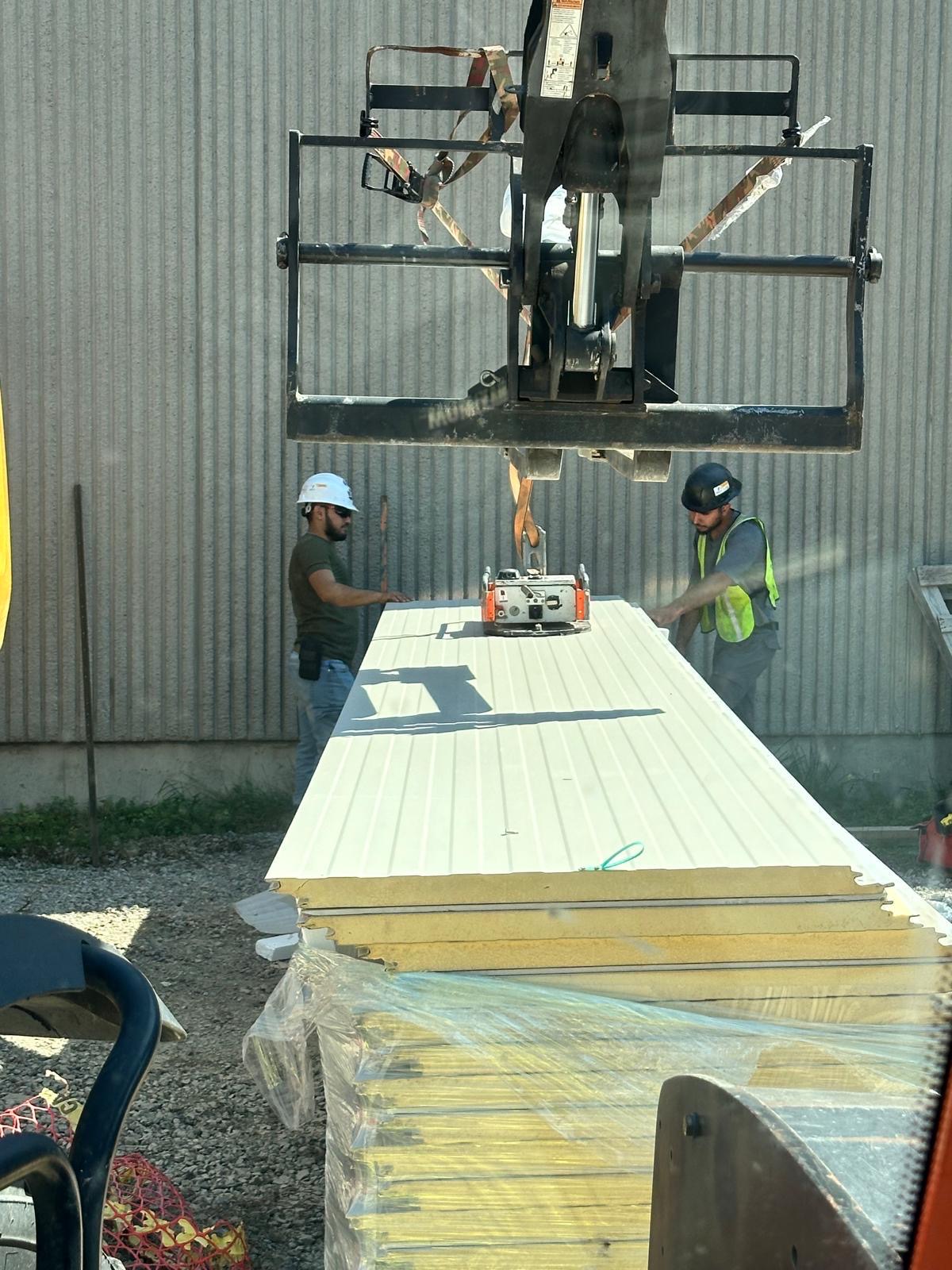

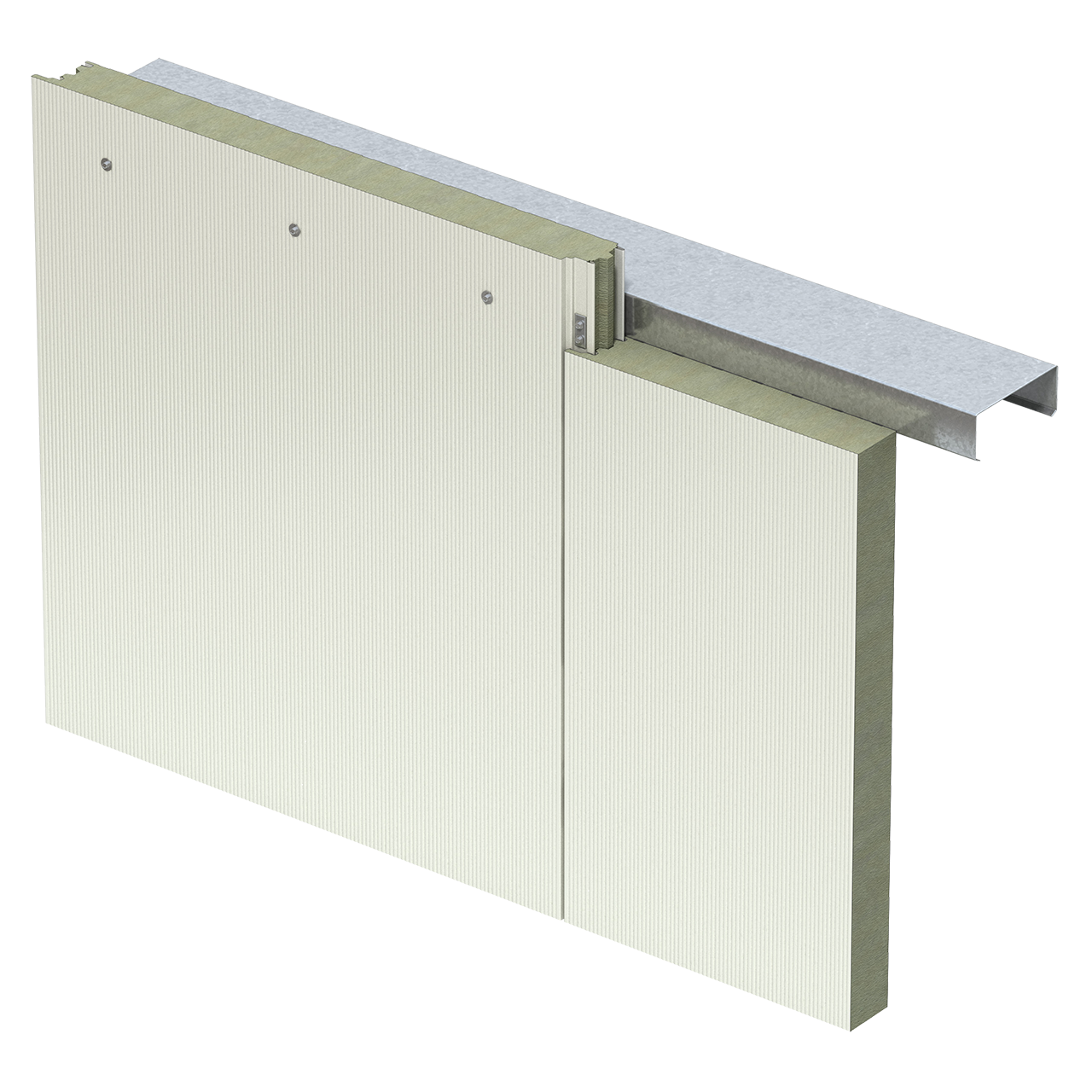

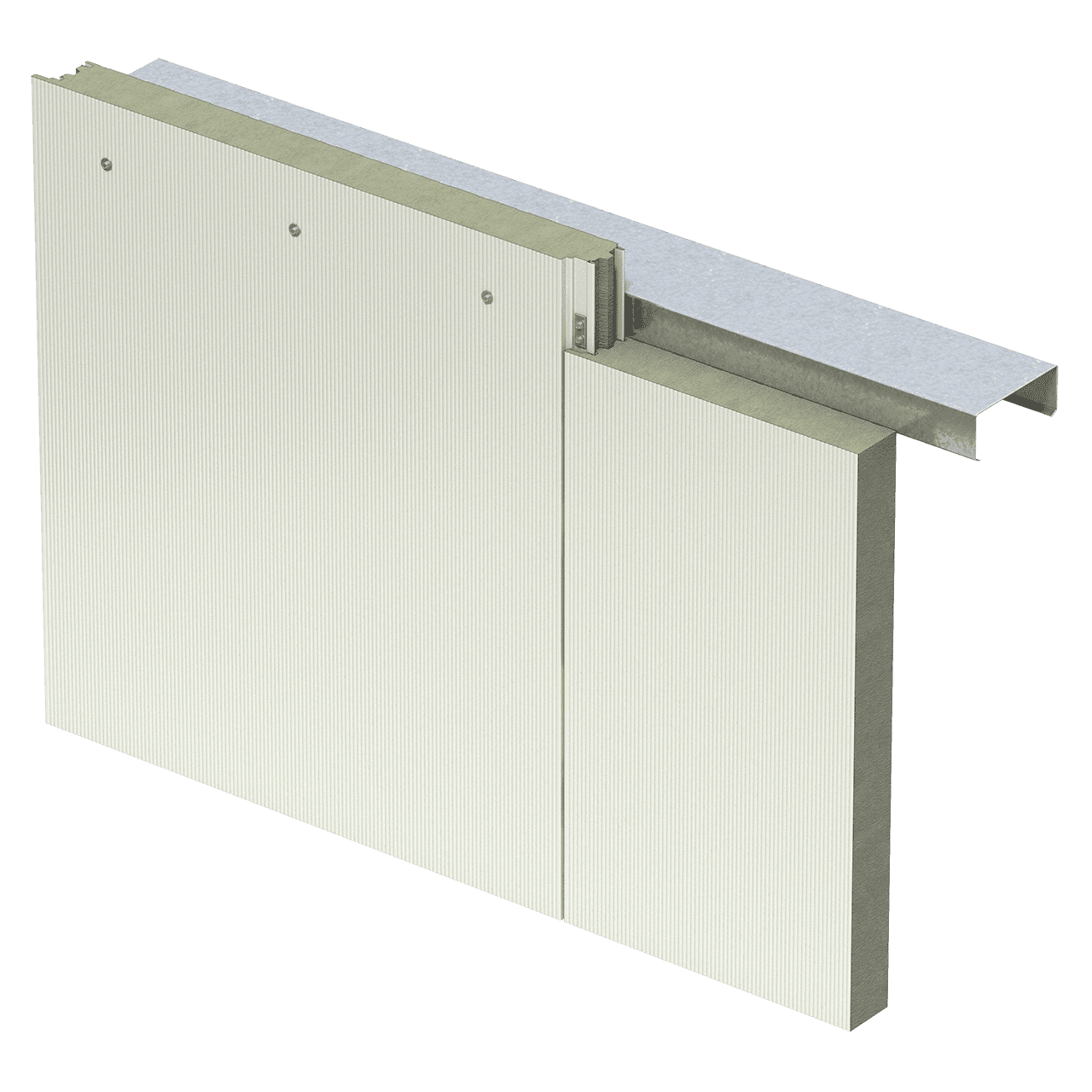

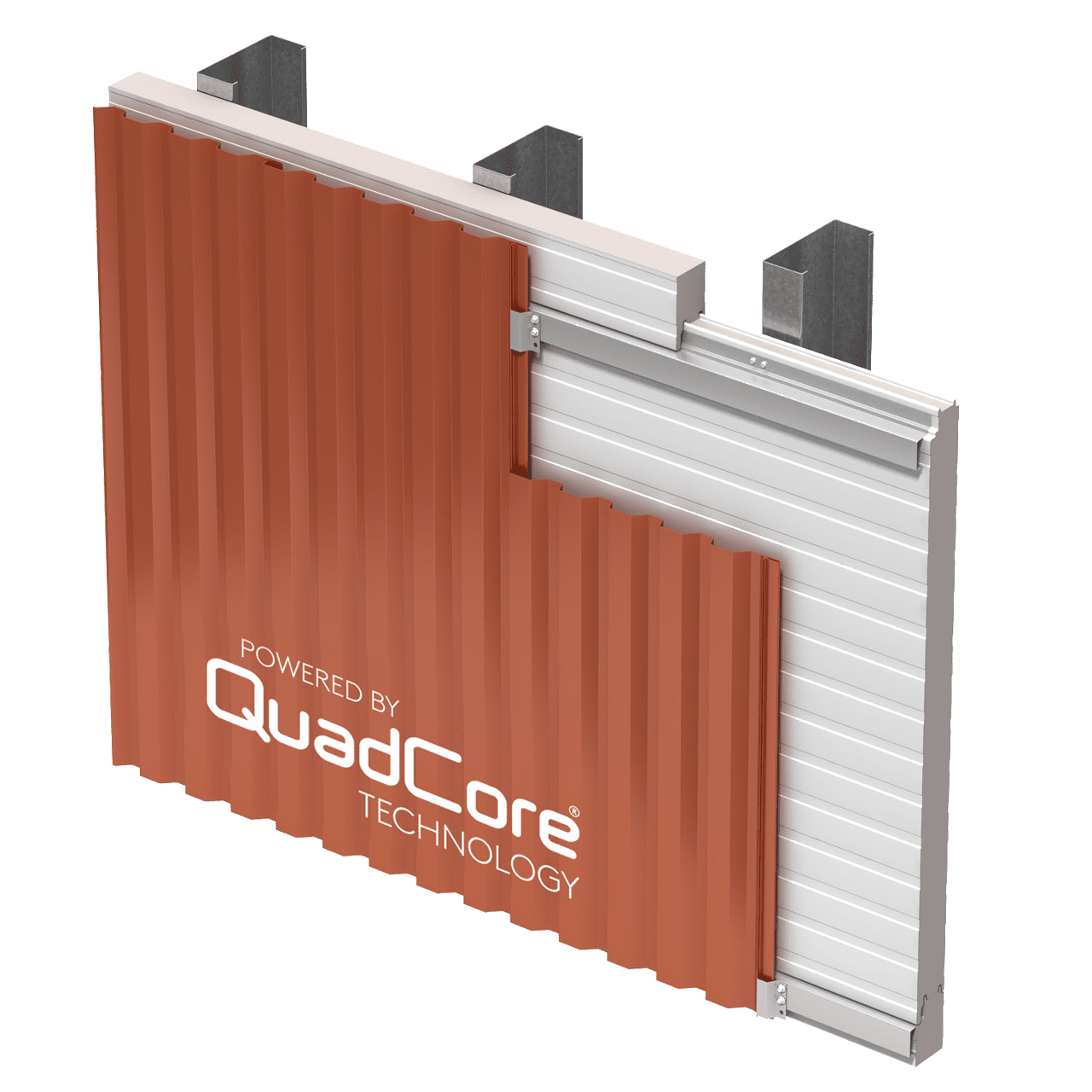

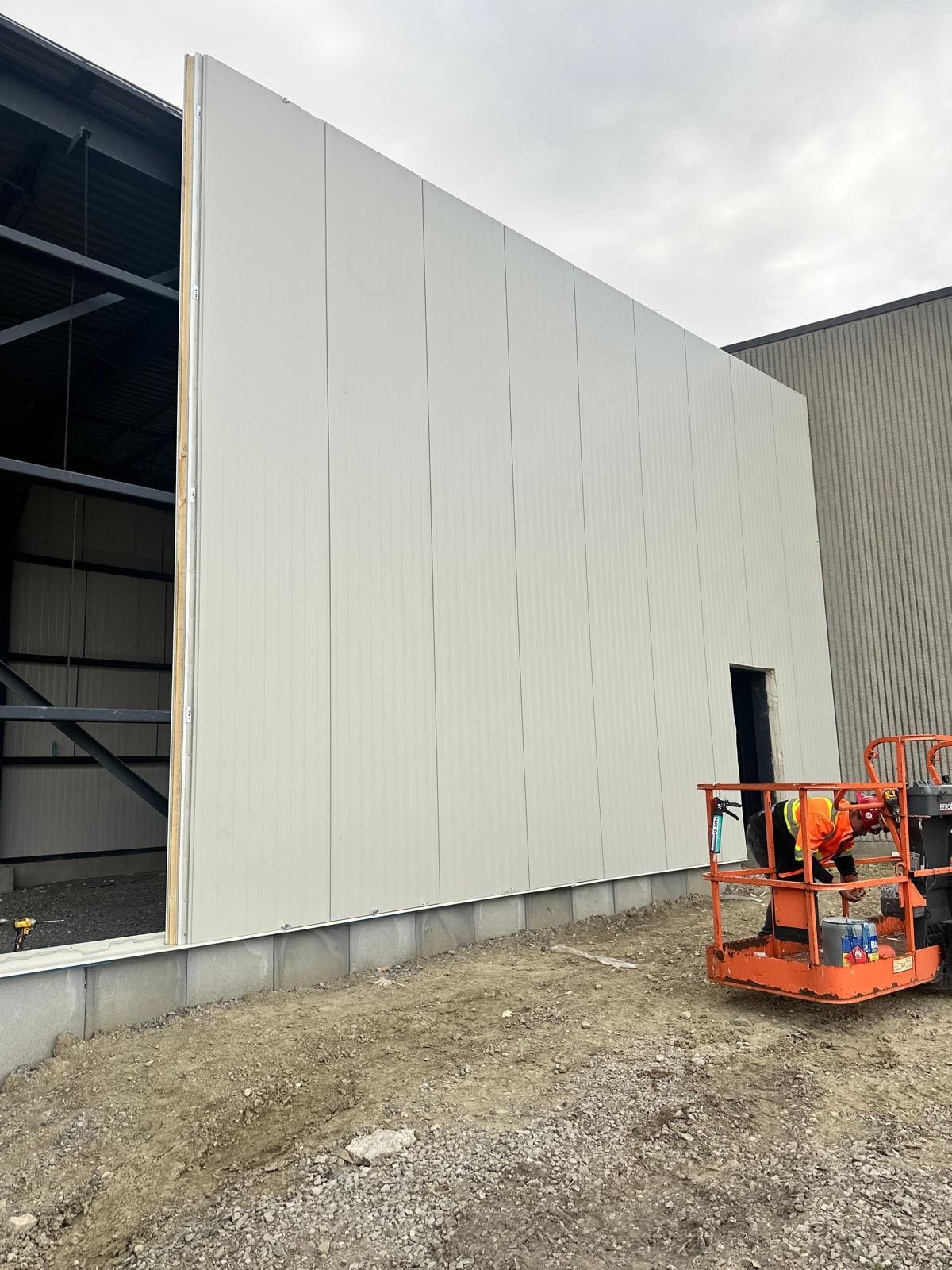

The installation process involves securing the panels directly to the building’s structural steel frame using a “tongue and groove” interlocking system. Because they are a single-component system, they can be installed in almost any weather condition, significantly reducing the “dry-in” time compared to traditional brick or stick-built walls.

es. A building envelope is only as good as its details. Nortem provides custom-fabricated flashings and trims that match your chosen Kingspan, Vicwest, or Norbec panels perfectly, ensuring a seamless, watertight finish at corners, windows, and doors.

Absolutely. We work closely with architects and developers to ensure the selected panel meets local Canadian building codes, wind load requirements, and energy efficiency targets. We help you choose between PIR, QuadCore®, or Mineral Wool cores based on your specific project needs.
